Mazda CX-5 Service & Repair Manual: High Pressure Fuel Pump Removal/Installation

WARNING:

• Fuel is very flammable liquid. If fuel spills or leaks from the pressurized fuel system, it will cause serious injury or death and facility breakage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”, while referring to “BEFORE SERVICE PRECAUTION”.

• A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.

CAUTION:

• Do not disassemble the high pressure fuel pump.

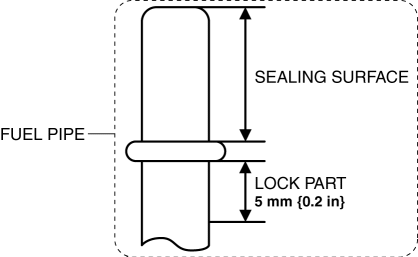

• Do not damage the sealing surface or the lock part of the fuel pipe.






• Damage or deformation to the end of the high pressure line pipe may cause fuel leakage.

• Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

1. Complete the “BEFORE SERVICE PRECAUTION”..

2. Disconnect the negative battery cable..

3. Remove the plug hole plate..

4. Remove the air cleaner and air hose as a single unit..

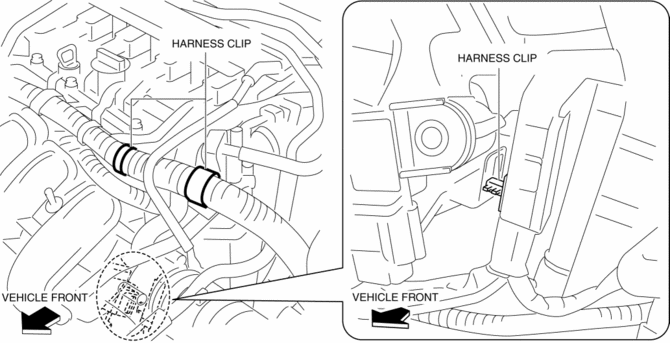

5. Disconnect the harness clip as shown in the figure.

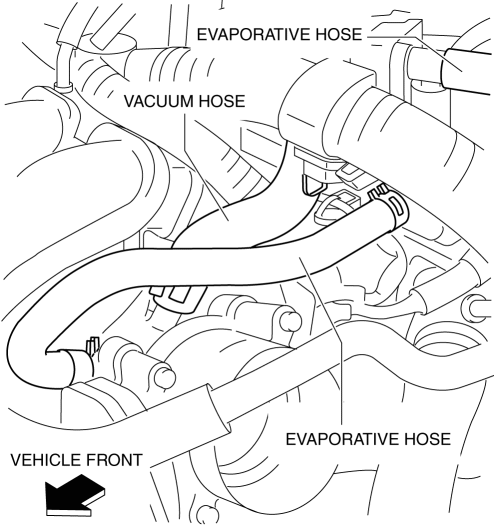

6. Disconnect the hoses as shown in the figure.

7. Disconnect the following parts connectors.

• Purge solenoid valve

• High pressure fuel pump

• Intake CMP sensor

8. Remove the purge solenoid valve and catch tank and purge solenoid valve bracket as a single unit..

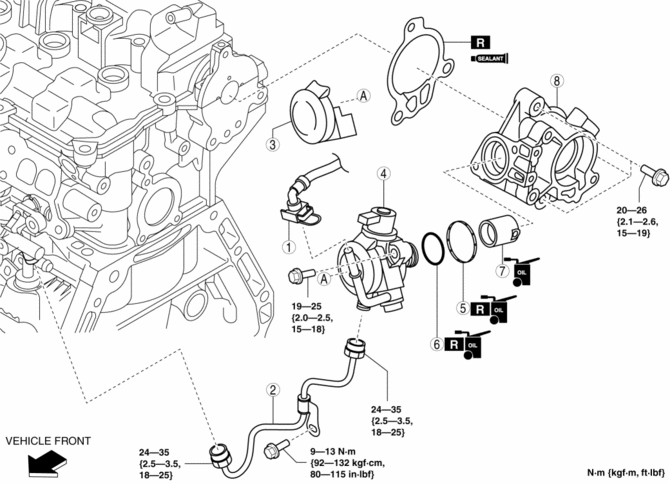

9. Remove in the order indicated in the table.

NOTE:

• Only when the high pressure fuel pump (figure (4)) is removed, the rear housing (figure (8)) does not have to be removed.

10. Install in the reverse order of removal.

11. Complete the “AFTER SERVICE PRECAUTION”..

12. Complete the “Fuel Leakage Inspection After High Pressure Fuel Pump Installation”..

High Pressure Fuel Pipe Removal Note

CAUTION:

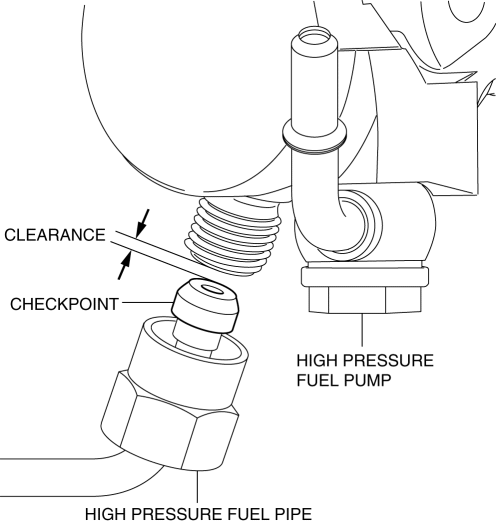

• When removing the high pressure fuel pipe, the end of the high pressure fuel pipe may be damaged because the clearance between the high pressure fuel pump and the high pressure fuel pipe is small. Be very careful when handling the end of the high pressure fuel pipe so as not to damage it.






• If the high pressure fuel pump is removed with the high pressure fuel pipe installed, the high pressure fuel pipe and fuel distributor may be damaged because of the excessive force caused by the spring force of the high pressure fuel pump. The high pressure fuel pipe and fuel distributor must be replaced if they are damaged. Always remove the high pressure fuel pipe before removing the high pressure fuel pump.

1. Remove the high pressure fuel pipe.

Rear Housing Removal Note

1. Remove the vacuum pump..

2. Remove the rear housing.

Rear Housing Installation Note

NOTE:

• After applying silicone sealant, install the rear housing within 10 min. and then tighten all bolts within 5 min.

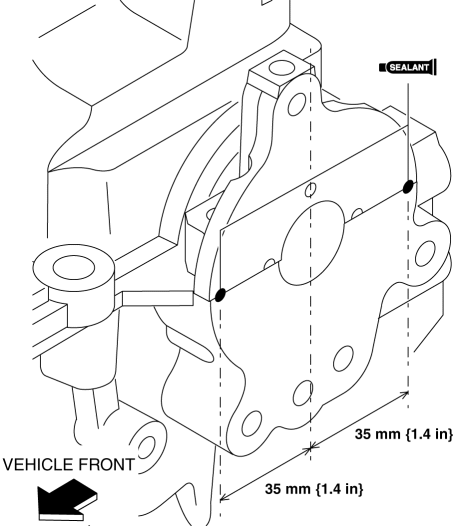

1. Apply silicone sealant to the areas shown in the figure.

Thickness

• 3.0—7.0 mm {0.12—0.27 in}

2. Install the rear housing.

High Pressure Fuel Pump Installation Note

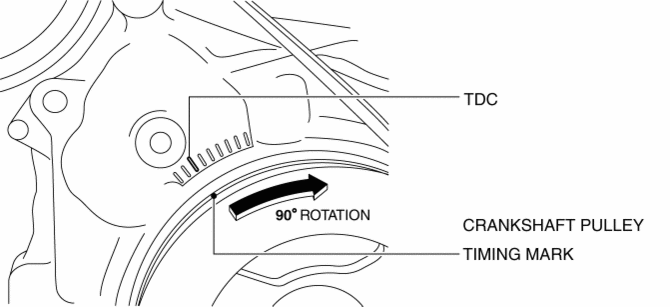

1. Rotate the crankshaft approx. 90 degrees from TDC of cylinder No.1.

2. Insert the high pressure fuel pump into the rear housing.

3. Press in the high pressure fuel pump until the O-ring cannot be seen.

4. Temporarily tighten the high pressure fuel pump installation bolt on one side until its head contacts the high pressure fuel pump.

5. Tighten the high pressure fuel pump installation bolt which is not tightened in Step 5.

High pressure fuel pump installation bolt tightening torque

• 19—25 N·m {2.0—2.5 kgf·m, 15—18 ft·lbf}

6. Tighten the high pressure fuel pump installation bolt which was tightened in Step 5.

High pressure fuel pump installation bolt tightening torque

• 19—25 N·m {2.0—2.5 kgf·m, 15—18 ft·lbf}

High Pressure Fuel Pipe Installation Note

CAUTION:

• Damage or deformation to the end of the high pressure fuel pipe may cause fuel leakage. When installing the high pressure fuel pipe to the high pressure fuel pump, be very careful while handling the end of the high pressure fuel pipe.

• If parts are exposed to fuel, their function may be decreased or a fire may occur. Always wipe off any leaked fuel using a clean rag.

• Do not let foreign materials enter into the high pressure fuel pipe.

• The high pressure fuel pipe can be used up to 5 times in a row. When removing/installing the high pressure fuel pipe, always record the number of times in the service records. When removal of the high pressure fuel pipe reaches the 6th time, replace it with a new one.

1. Temporarily tighten the nuts on both ends.

2. Temporarily tighten the high pressure fuel pipe bracket installation bolt.

3. Tighten the nuts on both ends.

High pressure fuel pipe tightening torque

• 24—35 N·m {2.5—3.5 kgf·m, 18—25 ft·lbf}

4. Tighten the high pressure fuel pipe bracket installation bolt.

High pressure fuel pipe bracket installation bolt tightening torque

• 9—13 N·m {92—132 kgf·cm, 80—115 in·lbf}

Fuel Leakage Inspection After High Pressure Fuel Pump Installation

1. Verify that the high pressure fuel pump is assembled securely.

2. Verify that there is no fuel leakage around the high pressure fuel pump.
