Mazda CX-5 Service & Repair Manual: Oil Control Valve (OCV) Removal/Installation
WARNING:
-
A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
1. Disconnect the negative battery cable..
2. Remove the plug hole plate..
3. Remove the ignition coil/ion sensors..
4. Remove the cylinder head cover..

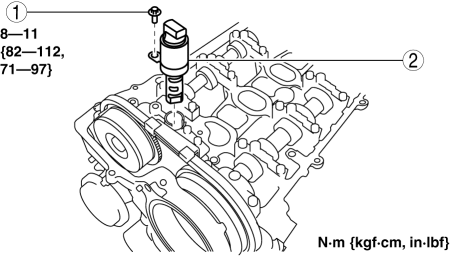

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
|
1 |
OCV installation bolt |
|
2 |
OCV |
Oil Control Valve (OCV) Inspection
Coil Resistance Inspection
1. Disconnect the negative battery cable..
2. Remove the plug hole plate..
3. Disconnect the OCV connector.
4. Measure the resistance between terminals A and B using ...
Oil Control Valve (OCV)
Purpose, Function
The OCV switches the oil passage to the hydraulic variable valve timing actuator
to control the opening/closing period of the exhaust valve.
Construction
The O ...
