Mazda CX-5 Service & Repair Manual: Global Positioning System (Gps) Antenna Removal/Installation

Mazda CX-5 Service & Repair Manual / Accessories / Electronics / Navigation / Global Positioning System (Gps) Antenna Removal/Installation

1. Disconnect the negative battery cable..

2. Remove the center speaker grille..

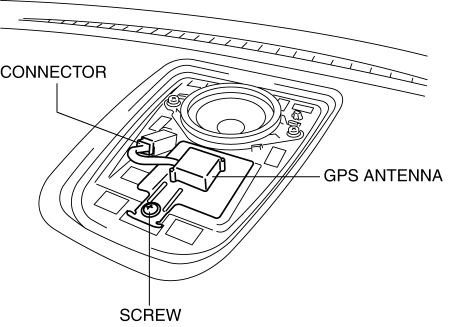

3. Disconnect the connector.


4. Remove the screw.

5. Remove the GPS antenna.

6. Install in the reverse order of removal.
