Mazda CX-5 Service & Repair Manual: Security Indicator Light
Purpose
-
Notifies the driver that the immobilizer system is operating.
Function
-
If a malfunction is detected in the immobilizer system, the DTC can be verified by the flashing pattern of the security indicator light.
Construction
-

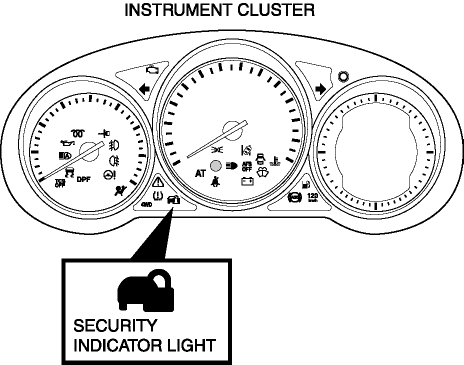

The security indicator light is built into the instrument cluster.
Operation
-
When the immobilizer system is operating, it illuminates for 0.1 s every approx. 2 s.
-
If the immobilizer system is normal, the security indicator light illuminates for approx. 3 s and then turns off after the push button start is pressed.
Fail-safe
-
Function not equipped.
Seat Belt Warning Light
Purpose
The seat belt warning light warns the driver that a seat belt is not fastened.
Function
The instrument cluster flashes/illuminates the seat belt warning light based
on t ...
Shift Position Indicator Light [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
The shift position indicator light indicates the selector lever position.
Construction
The shift position indicator light is built into the instrument cluster.
...
