Purpose/Function
-
The turbine/input shaft speed sensor detects the rotation speed of the input shaft (low clutch drum).
-
The output shaft speed sensor detects the rotation speed of the output shaft (primary gear).
-
The turbine/input shaft speed sensor and output shaft speed sensor signals are used for automatic shift control, manual shift control, and the on-board diagnostic system.
Construction
-

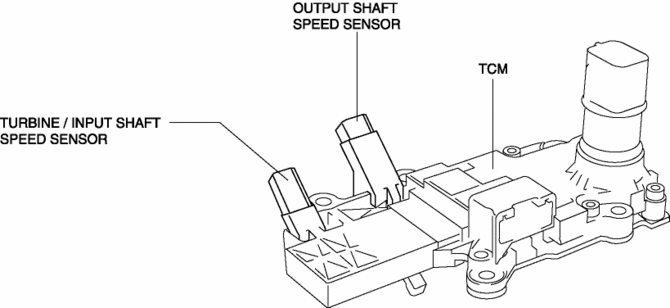

The turbine/input shaft speed sensor and output shaft speed sensor are both integrated with the TCM and built-into the control valve body.
Operation
-
The turbine/input shaft speed sensor changes the output signal according to the rotation speed of the low clutch drum.
-
The output shaft speed sensor changes the output signal according to the rotation speed of the primary gear.
