Mazda CX-5 Service & Repair Manual: Steering Switch Inspection

Mazda CX-5 Service & Repair Manual / Steering / General / Steering Switch Inspection

Without Bluetooth system

WARNING:

1. Switch the ignition OFF (LOCK).

2. Disconnect the negative battery cable and wait for 1 min or more

..

3. Remove the driver-side air bag module..

4. Remove the steering wheel..

5. Verify that the resistance and continuity between the steering switch terminals is as indicated in the table.


6. Apply battery positive voltage to steering switch terminal F, and connect terminal B to ground.


7. Verify that the LED illuminates.

With Bluetooth system

WARNING:

1. Switch the ignition OFF (LOCK).

2. Disconnect the negative battery cable and wait for 1 min or more

..

3. Remove the driver-side air bag module..

4. Remove the steering wheel..

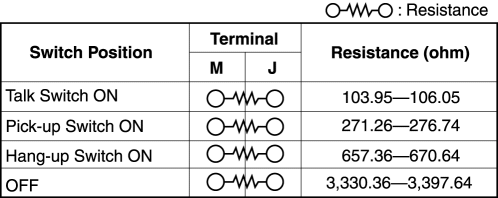

5. Verify that the resistance and continuity between the steering switch terminals is as indicated in the table.


6. Apply battery positive voltage to steering switch terminal F, and connect terminal B to ground.


7. Verify that the LED illuminates.
