WARNING:

Handling the side air bag sensor improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the side air bag sensor..

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait for 1 min or more

3. Remove the front scuff plate..

4. Remove the rear scuff plate..

5. Remove the B-pillar lower trim..

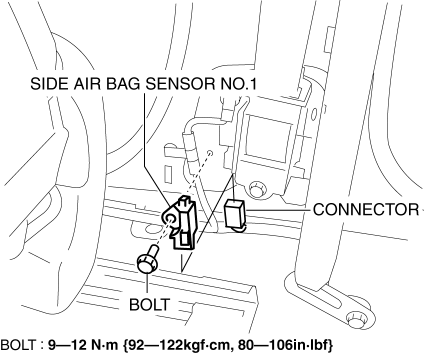

6. Remove the bolt.

7. Disconnect the connector..

8. Remove the side air bag sensor No.1.

9. Install in the reverse order of removal.

10. Switch the ignition ON (engine off or on).

11. Verify that the air bag system warning light illuminates for approx. 6 s

and goes out.

If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system..

Connector Disconnect Note

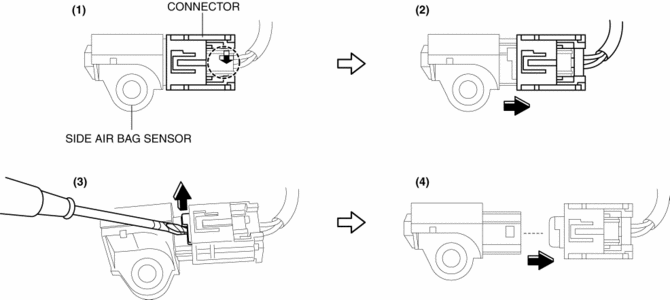

1. Press the area (1) indicated by the arrow and slide it as shown in the figure (2).

2. Lift up the location shown in the figure using a tape-wrapped flathead screwdriver (3) and disconnect the connector (4).
