1. Switch the ignition to off.
2. Disconnect the negative battery cable and wait for 1min or more
..
3. Remove the front driver’s seat..

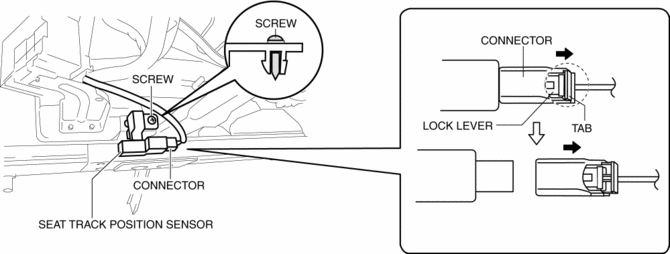

4. Disconnect the connector from the seat track position sensor by pressing the connector tab and pulling out the lock lever in the direction of the arrow.
When connecting the seat track position sensor connector, insert the lock lever (connector disconnection prevention lever) completely.
5. Remove the screw.

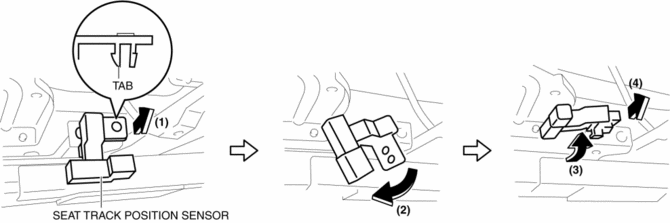

6. Detach the tab while lifting up the seat track position sensor in the direction of the arrow (1).
7. Rotate the seat track position sensor in the direction of the arrow (2).
8. Rotate the seat track position sensor in the direction of the arrow (3).
9. Remove the seat track position sensor (4).
10. Install in the reverse order of removal.
11. Switch the ignition ON (engine off or on).
12. Verify that the air bag system warning light illuminates for approx. 6 s
and goes out.
If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system..
