Mazda CX-5 Service & Repair Manual: Rear Washer Nozzle Adjustment
CAUTION:
-
If the nozzle angle is adjusted with excessive force by strongly inserting a needle or similar thin tool into the injection nozzle of rear washer nozzle, it could damage the nozzle internally. When adjusting the nozzle, be careful not to apply excessive force.

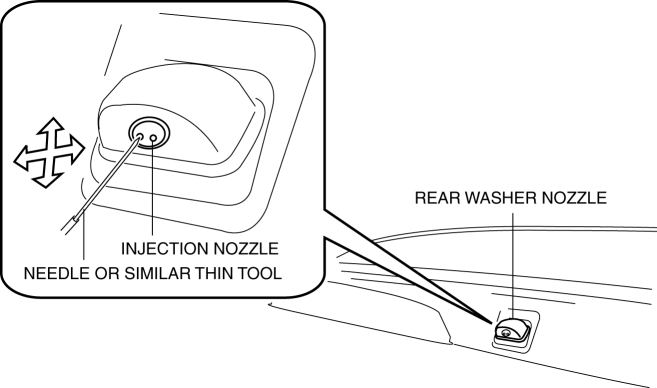

1. Insert a needle or similar thin tool into the injection nozzle of the rear washer nozzle and adjust the area where washer fluid injected from the rear washer nozzle is sprayed as shown in the figure.
Rear Washer Hose Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the front over fender..
3. Remove the mudguard (RH)..
4. Disconnect the rear washer hose A from the washer motor.
5. Remove the rear washer ...
Rear Washer Nozzle Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the liftgate upper trim..
3. Remove the rear spoiler..
4. Disconnect the rear washer hose from the rear washer nozzle..
5. While pressing t ...
