Purpose
The power MOS FET controls the blower motor rotation speed.
Function

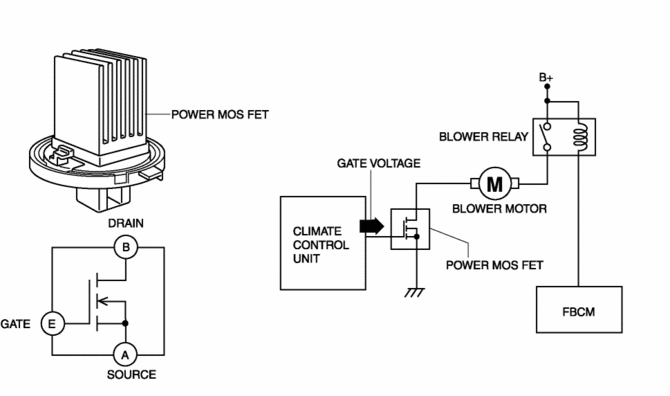

The power MOS FET controls the supply voltage to the blower motor based on the gate voltage sent from the climate control unit, and adjusts the fan rotation speed (airflow volume).
Construction
The power MOS FET is installed to the A/C unit.
A transistor-type power MOS FET has been adopted and it is equipped with three electrodes, a source, a gate, and a drain.
Operation

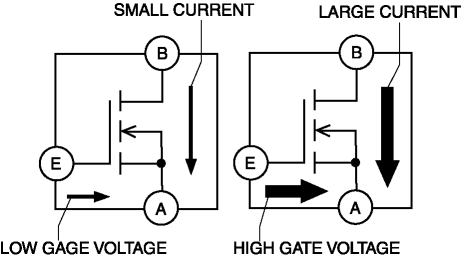

The resistance between terminals B and A (between drain and source) changes according to the voltage (gate voltage) applied to terminal E (gate).
When the gate voltage increases, the resistance between terminals B and A decreases, allowing the current to flow easily. Therefore, the blower motor rotation speed increases.
When the gate voltage decreases, the resistance between terminals B and A increases, making current flow difficult. Therefore, the blower motor rotation speed decreases.
Fail-safe
Function not equipped.
Air Intake Actuator [Full Auto Air Conditioner]
Purpose
The air intake actuator moves the air intake door in the blower unit to switch
the air intake port.
Function
The air intake actuator drives the motor based on the signal from the climate
control unit and moves the air intake door to the FRESH or REC position.
...
Passenger Compartment Temperature Sensor Removal/Installation [Full Auto Air
Conditioner]
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Front scuff plate (driver-side).
b. Front side trim (driver-side).
c. Switch panel.
d. Decoration panel.
e. Shift lever knob (MTX).
f. Front console box.
g. Shift panel.
h. Upper panel.
i. Rear console. ...
Evaporator Temperature Sensor Inspection [Full Auto Air Conditioner]
NOTE:
Inspect the evaporator temperature sensor when it is installed to the A/C
unit.
1. Set the fan speed at MAX HI.
2. Set the temperature control at MAX COLD.
3. Set the RECIRCULATE mode.
4. Turn the A/C switch off.
5. Close all doors and windows.
6. Wait for 5 min.
7 ...
