Mazda CX-5 Service & Repair Manual: Power Flow [Fw6 A EL, Fw6 Ax EL]

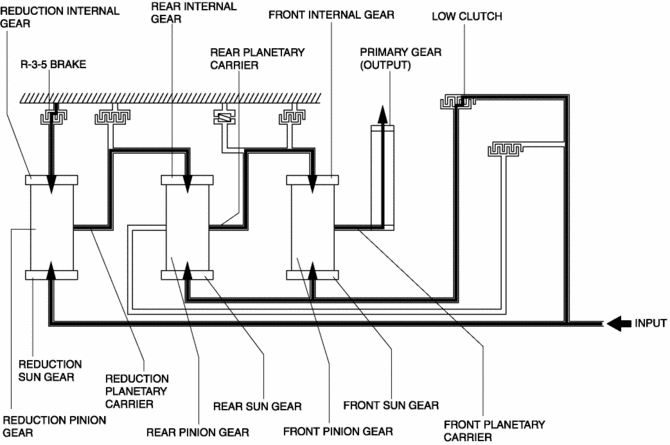

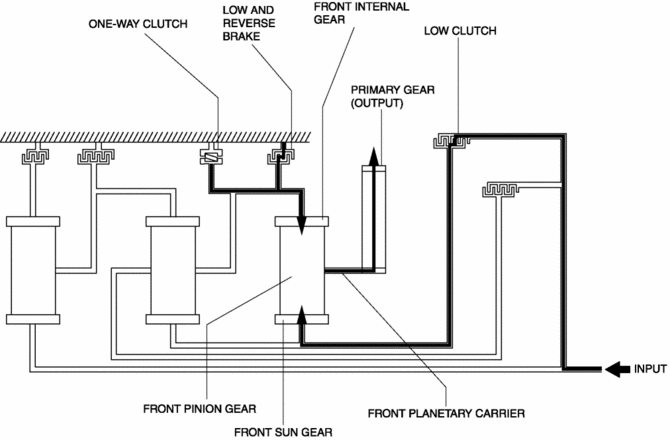

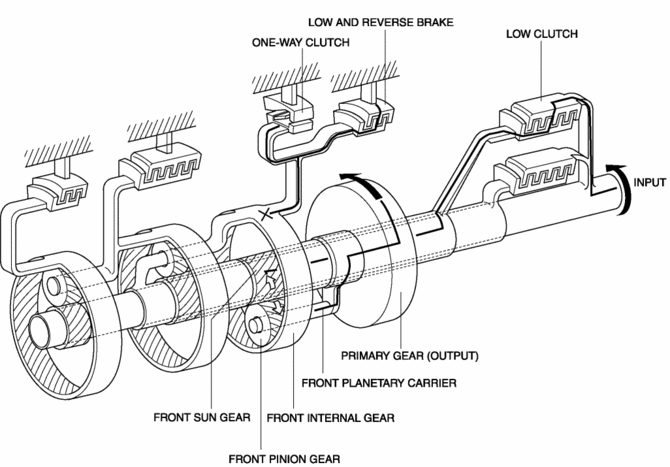

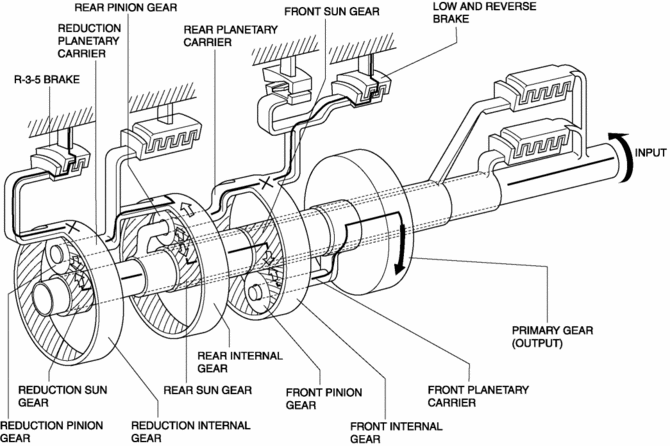

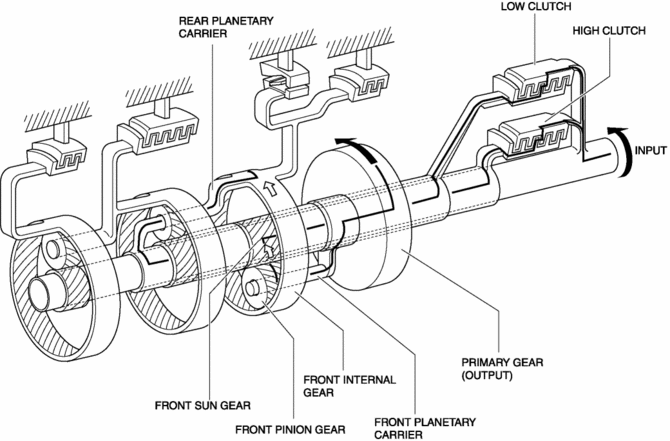

Power flow

1 GR

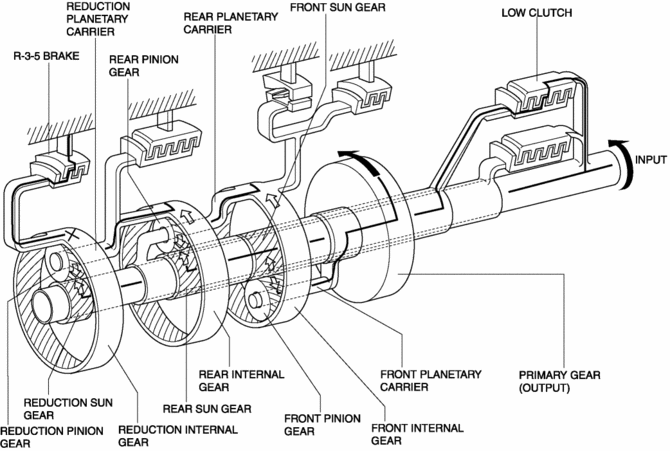

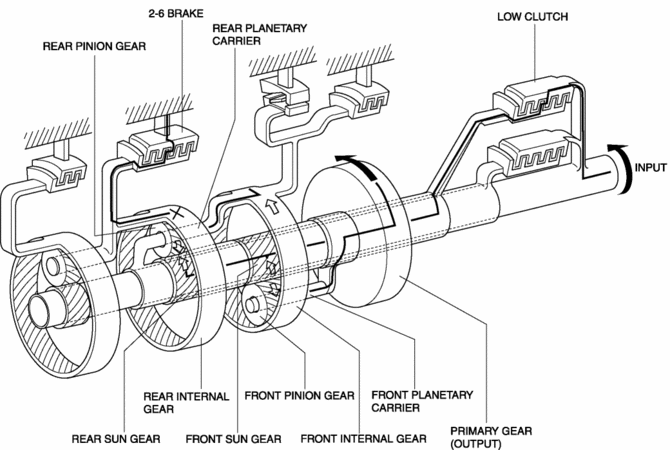

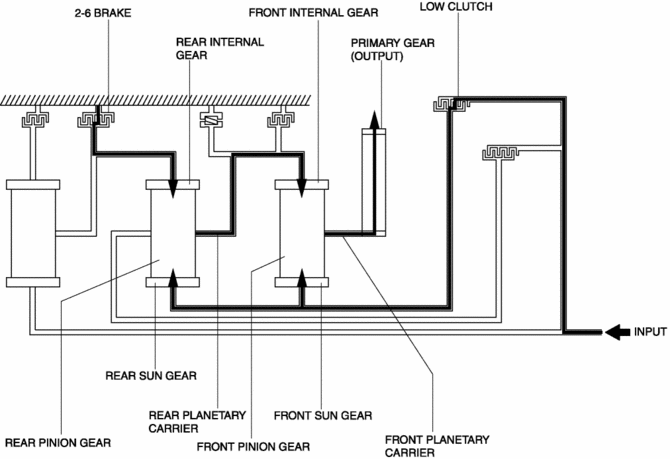

2 GR

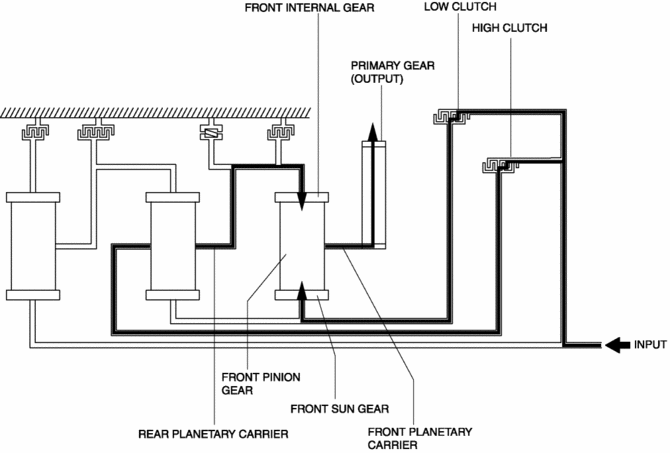

3 GR

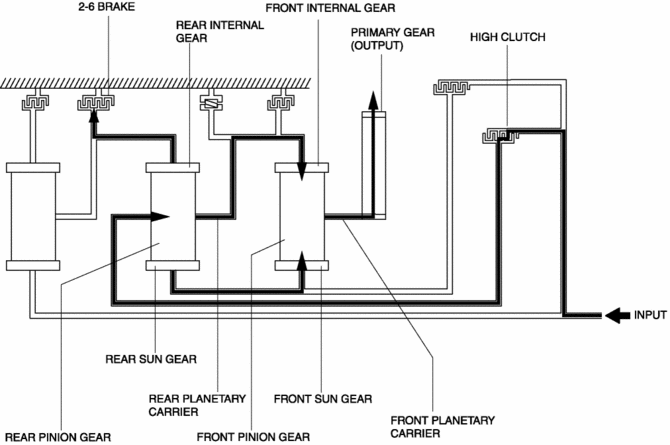

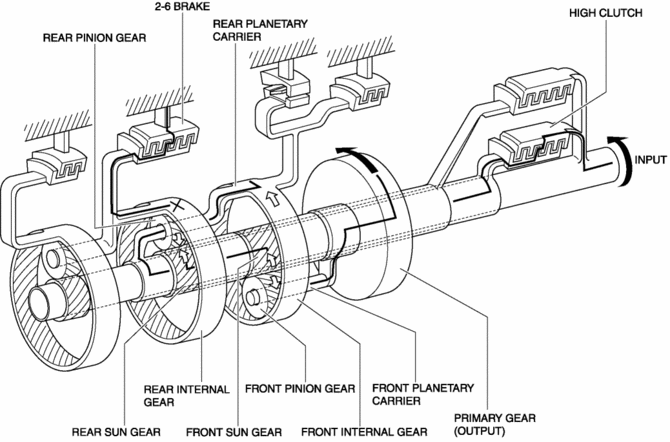

4 GR

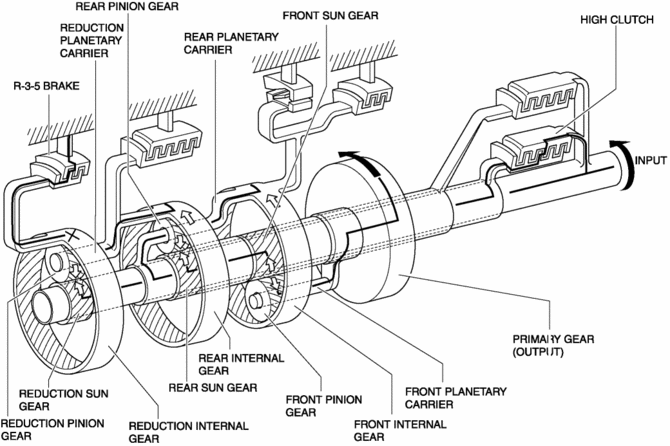

5 GR



6 GR

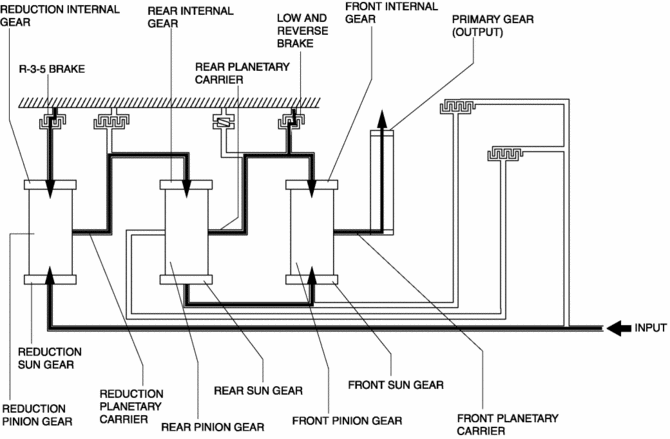

REVERSE



Planetary Gear [Fw6 A EL, Fw6 Ax EL]
Purpose/Function The planetary gear is a mechanism which shifts the drive force from the engine. The planetary gear consists of multiple gears which rotate individually while revolving. B ...

Powertrain System Outline [Fw6 A EL, Fw6 Ax EL]
Outline The powertrain consists of a 2-piece multi-plate clutch, 3-piece multi-plate brake, a one-way clutch, and a 3-piece single-type planetary gear. Construction Component parts li ...
