Mazda CX-5 Service & Repair Manual: Neutral Switch Removal/Installation [C66 M R]
1. Disconnect the negative battery cable..

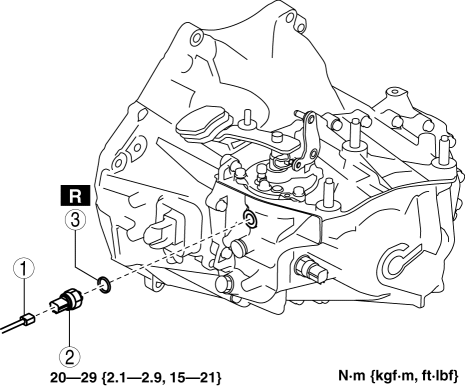

2. Remove the air cleaner component. (ex: air cleaner, air hose).
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
|
1 |
Neutral switch connector |
|
2 |
Neutral switch |
|
3 |
Gasket |
M Position Switch [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
The M position switch detects that the selector lever is in the M position.
The M position switch signal is sent to the TCM via CAN, and is used for
manual shift con ...
Not P Position Switch Inspection
NOTE:
The not P position switch is built into the selector lever component.
1. Disconnect the negative battery cable..
2. Remove the front console..
3. Disconnect the selector lever ...
