Mazda CX-5 Service & Repair Manual: Center Roof Antenna
Purpose, Function
-
Converts radio broadcast waves to electric signals and sends the signals to the audio unit.
Construction
-
A center roof antenna has been adopted which does not require retraction or removal before going through an automatic car wash machine.
-
The center antenna has an integrated antenna amplifier which amplifies the electric signal.
Operation
-

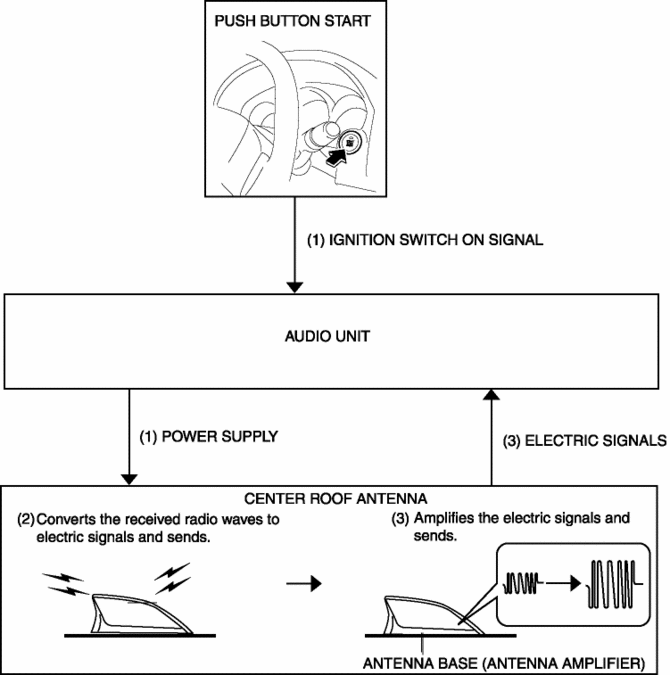

When the ignition is switched to ACC or ON (engine off or on), power is supplied from the audio unit to the antenna amplifier inside the center roof antenna.
-
The center roof antenna converts the received radio waves of a radio broadcast to an electric signal.
-
The center roof antenna amplifies the converted electric signal using the antenna amplifier and sends the signal to the audio unit.
Fail-safe
-
Function not equipped.
Auxiliary Jack/Usb Port Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the upper console..
3. While pressing the auxiliary jack/USB port. tabs in the direction of the arrows
(1) shown in the figure, press the aux ...
Center Roof Antenna Inspection
NOTE:
The center roof antenna is integrated with the antenna amplifier.
Antenna amplifier inspection
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Fro ...
