Mazda CX-5 Service & Repair Manual: Air Filter
Purpose
-
The air filter removes pollen and dust in the intake air and purifies air flowing into the cabin.
Function
-

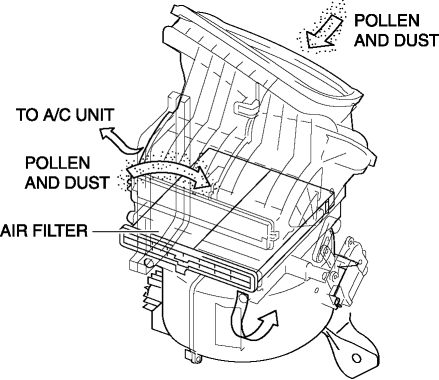

The air filter removes pollen and dust using a dust collecting filter.
Construction
-
The air filter is installed to the blower unit.
-
It is necessary to periodically replace the air filter because it cannot be reused by cleaning.
Fail-safe
-
Function not equipped.
General
...
Air Filter Inspection
1. Verify that there is no damage, excessive dirt, or abnormal odor on the air
filter.
If there is any malfunction, replace the air filter.
NOTE:
The air filter cannot be reuse ...
