1. Disconnect the negative battery cable..

2. Discharge the refrigerant..

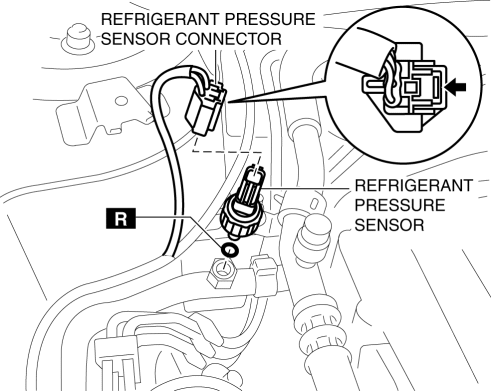

3. Disconnect the refrigerant pressure sensor connector.

CAUTION:

If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

4. Loosen the refrigerant pressure sensor using two spanners.

5. Remove the refrigerant pressure sensor..

Tightening torque

10—11 N·m {102—112 kgf·cm, 89—97 in·lbf}

6. Install in the reverse order of removal.

7. Perform the refrigerant system performance test..

Refrigerant Pressure Sensor Installation Note

1. Apply compressor oil to the O-rings and connect the joints.

Refrigerant Pressure Sensor Removal/Installation [Full Auto Air Conditioner]

1. Disconnect the negative battery cable.. 2. Discharge the refrigerant.. 3. Disconnect the refrigerant pressure sensor connector. CAUTION: If moisture or foreign material enters the ref ...

Refrigerant Pressure Sensor [Full Auto Air Conditioner]

Purpose The refrigerant pressure sensor detects the refrigerant pressure in the refrigerant cycle. Function The refrigerant pressure sensor converts the detected refrigerant pre ...
