Mazda CX-5 Service & Repair Manual: Horn Removal/Installation

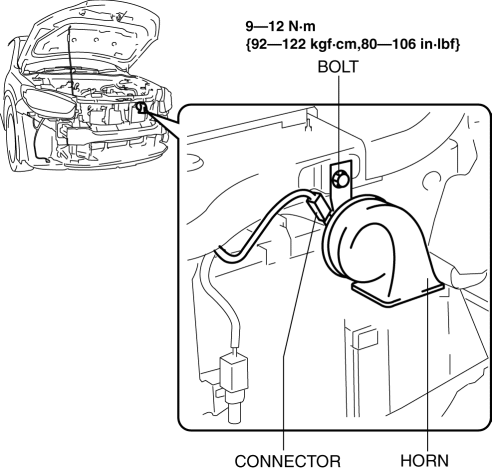

1. Disconnect the negative battery cable..
2. Remove the front bumper..
3. Disconnect the connector.
4. Remove the bolt.
5. Remove the horn.
6. Install in the reverse order of removal.
Horn Inspection
1. Disconnect the negative battery cable..
2. Remove the front bumper..
3. Remove the horn..
4. Apply battery positive voltage to horn terminal A, and connect the horn retaining
bolt to ground ...
Theft Deterrent Horn Inspection
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Trunk end trim.
b. Rear scuff plate (RH).
c. Trunk side trim (RH).
d. Theft-deterrent horn.
3. Apply battery po ...
