Mazda CX-5 Service & Repair Manual: Air Fuel Ratio (A/F) Sensor

Mazda CX-5 Service & Repair Manual / Engine / Control / Air Fuel Ratio (A/F) Sensor

Purpose/Function

Detects the oxygen concentration (all-range air/fuel ratio) in the exhaust gas as basic information for mainly determining the fuel injection amount.
Detects the oxygen concentration (all-range air/fuel ratio) in the exhaust gas and inputs it to the PCM as an oxygen concentration (all-range air/fuel ratio) signal.

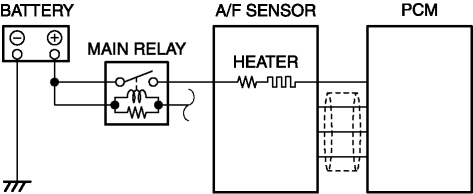

Construction

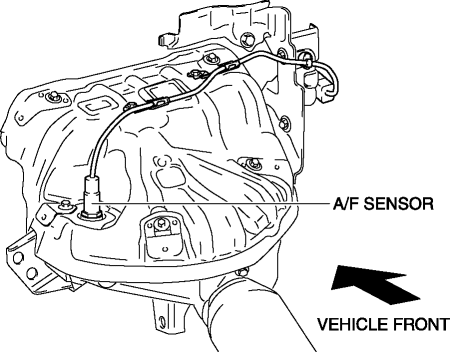

Installed to the exhaust manifold.
A zirconium element has been adopted as the detecting element for detecting the oxygen concentration (all-range air/fuel ratio).

Operation

Inputs the signal, which fluctuates according to the oxygen concentration (all-range air/fuel ratio), to the PCM.

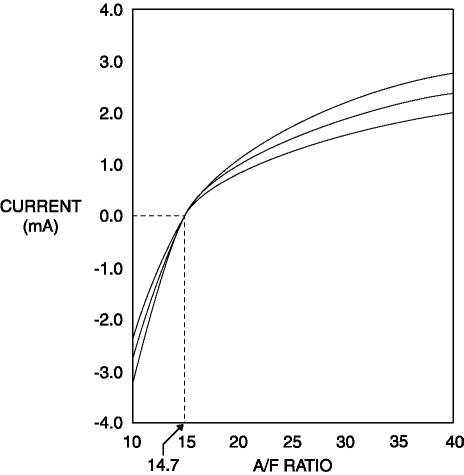

A/F sensor characteristic

Fail-safe


DTC No.	Fail-safe function
P0031:00	Stops the fuel feedback control.
P0032:00	Stops the fuel feedback control.
P0130:00	Fixes the duty value of the A/F sensor heater. Stops the fuel feedback control.
P0131:00	Fixes the duty value of the A/F sensor heater. Stops the fuel feedback control.
P0132:00	Fixes the duty value of the A/F sensor heater. Stops the fuel feedback control.
P0134:00	Fixes the duty value of the A/F sensor heater. Stops the fuel feedback control.
P064D:00	Fixes the duty value of the A/F sensor heater. Stops the fuel feedback control.
P2237:00	Fixes the duty value of the A/F sensor heater. Stops the fuel feedback control.
P2243:00	Fixes the duty value of the A/F sensor heater. Stops the fuel feedback control.
P2251:00	Fixes the duty value of the A/F sensor heater. Stops the fuel feedback control.
