Mazda CX-5 Service & Repair Manual: Purge Solenoid Valve
Purpose, Function
-
Introduces evaporative gas absorbed by the charcoal canister to the intake manifold.
-
The purge solenoid valve opens according to the control signal from the PCM.
Construction
-

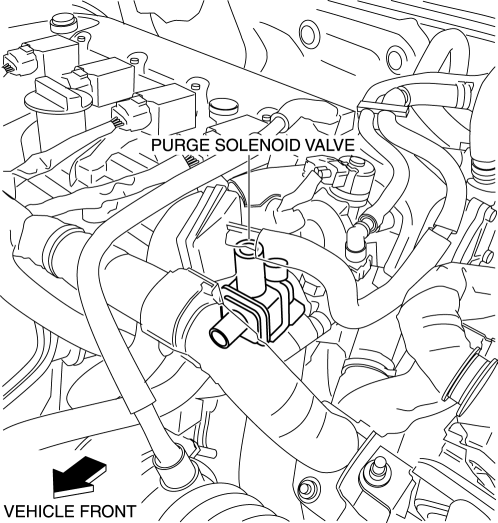

The purge solenoid valve is installed in the engine compartment.
-
The purge solenoid valve consists of a coil, spring, and plunger.
Operation
-
According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the purge solenoid valve.
-
When the purge solenoid valve is open, evaporative gas flows from the charcoal canister to the intake manifold side.
Purge solenoid valve open/closed view
-
For evaporative purge control details, refer to CONTROL SYSTEM..
Fail-safe
-
Function not equipped.
