Purpose/Function
-
Detects the neutral position of the shift lever.
Construction
-
Installed to the manual transaxle.
-
An ON/OFF type switch has been adopted.
Operation
-

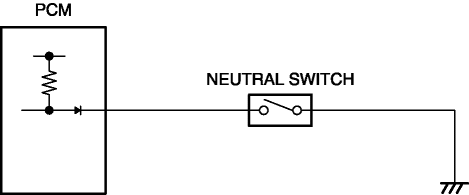

Inputs the neutral switch on/off signal to the PCM.
-
The contact point is on when in neutral to output voltage and off when not in neutral.
Fail-safe
-
Function not equipped.
Neutral Switch Inspection
Continuity Inspection
1. Disconnect the negative battery cable..
2. Remove the neutral switch..
3. Inspect for continuity between neutral switch No.1 terminal A and B.
If not as speci ...
PCM Configuration (Using As Built Data)
NOTE:
If the configuration is performed using As-Built data, the set value of the
personalization function is reset to the initial value (condition when shipped
from factory). Verify the ...
