Mazda CX-5 Service & Repair Manual: Front Buckle Removal/Installation
Driver-side
1. Disconnect the negative battery cable and wait for 1 min or more
..
2. Remove the front seat..

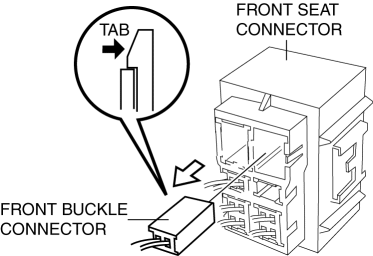

3. Disconnect the front buckle connector.

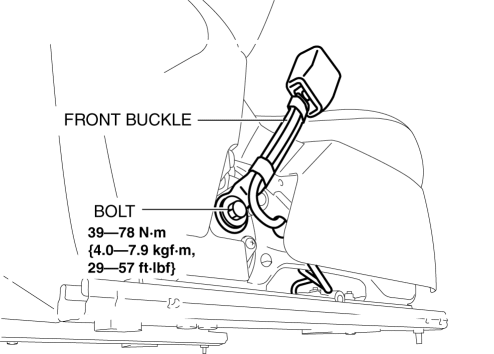

4. Remove the bolt.
5. Remove the front buckle.
6. Install in the reverse order of removal.
Passenger-side (with buckle switch)
1. Disconnect the negative battery cable and wait for 1 min or more
..
2. Remove the front seat..

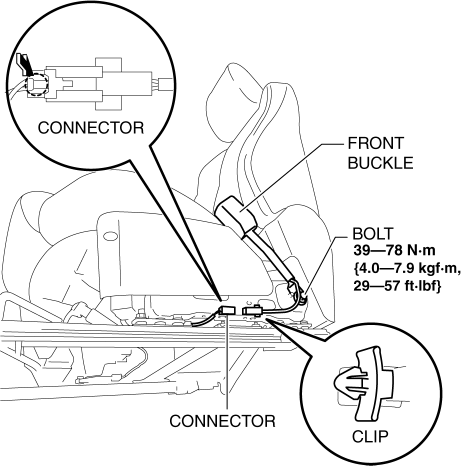

3. Disconnect the connector.
4. Detach the clip.
5. Remove the bolt.
6. Remove the front buckle.
7. Install in the reverse order of removal.
Buckle Switch Inspection
Driver-side
1. Switch the ignition to off.
2. Disconnect the negative battery cable and wait for 1 min or more..
3. Remove the front seat..
4. Remove the front buckle..
5. Inspect for contin ...
