Mazda CX-5 Service & Repair Manual: Differential Oil Temperature Sensor
Purpose, Function
-
The differential oil temperature sensor detects the rear differential oil temperature based on the resistance of the thermistor, and inputs it to the AWD CM.
Construction
-

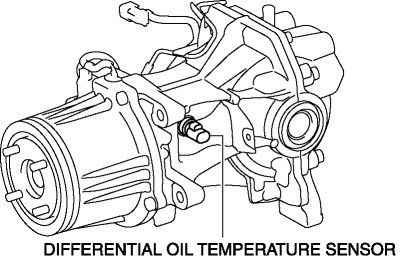

The differential oil temperature sensor is installed in the rear differential carrier.
Operation
-
The differential oil temperature sensor uses a thermistor whose resistance changes according to changes in the rear differential oil temperature.
-

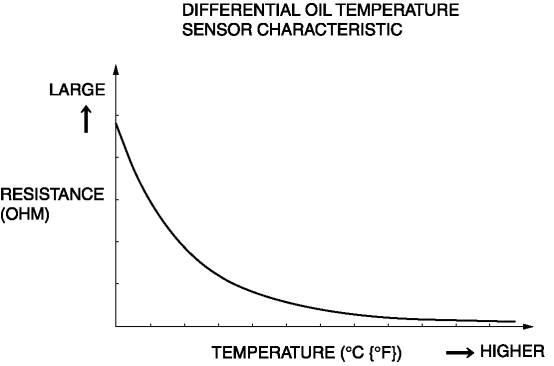

The resistance grows smaller as the oil temperature rises and vice-versa, as shown.
Fail-safe
|
DTC |
Fail-safe |
|
P1888:11 P1888:15 |
Control disabled. |
Ambient Temperature Sensor [Manual Air Conditioner]
Purpose
The ambient temperature sensor detects the ambient temperature.
Function
The ambient temperature sensor converts the detected temperature to an electric
signal.
Co ...
Differential Oil Temperature Sensor Inspection
WARNING:
Hot differential oil may cause severe burns. Do not perform maintenance while
differential oil is hot.
1. Disconnect the negative battery cable.
2. Disconnect the different ...
