Mazda CX-5 Service & Repair Manual: Dashboard Disassembly/Assembly

Mazda CX-5 Service & Repair Manual / Body / Body Interior / General / Dashboard Disassembly/Assembly

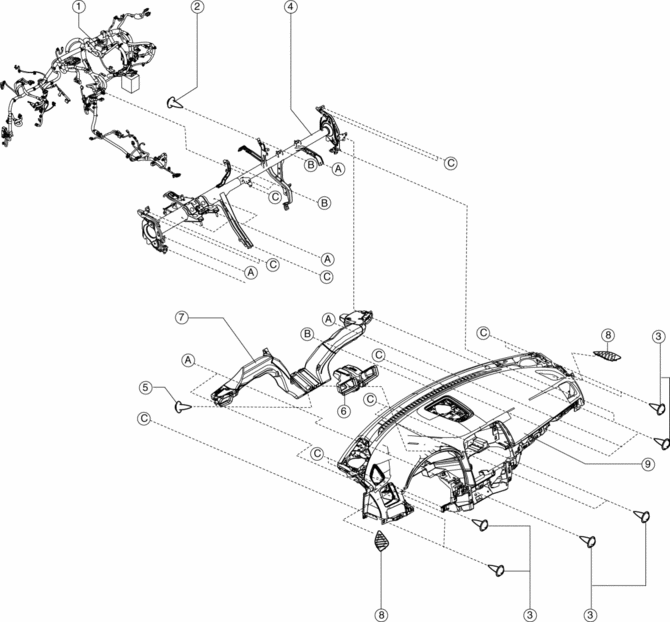

1. Disassemble in the order indicated in the table.



1

Wiring harness

2

Screw A

3

Screw B

4

Dashboard member

5

Screw C

6

Duct No.1

7

Duct No.2

8

Demister grille

9

Dashboard


2. Assemble in the reverse order of disassembly.
