Mazda CX-5 Service & Repair Manual: Rear Differential
Purpose, Function
-
A rear differential with an integrated coupling component has been adopted, reducing size and weight.
-
An aluminum differential carrier has been adopted, reducing weight.

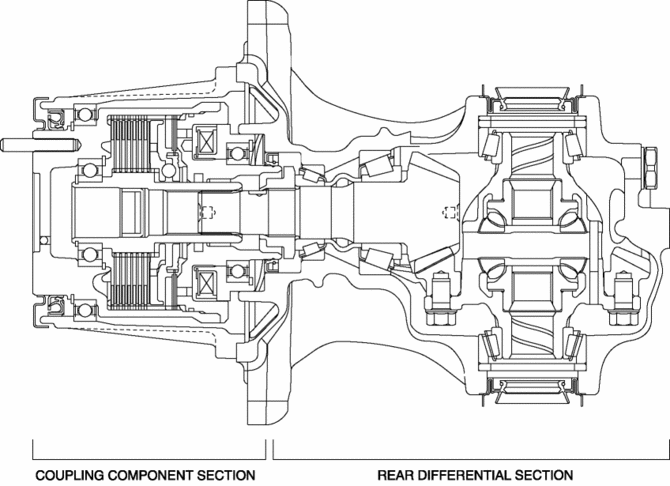

Cross-Sectional View
Oil Seal (Differential) Replacement [Fw6 A EL, Fw6 Ax EL]
Transaxle Case Side
1. Remove the front under cover No.2..
2. Drain the ATF..
3. Disconnect the drive shaft (LH) from the transaxle..
CAUTION:
The oil seal is easily damaged by the shar ...
Rear Differential Assembly
WARNING:
The engine stand is equipped with a self-lock mechanism, however, if the
rear differential is in a tilted condition, the self-lock mechanism could become
inoperative. If the rea ...
