Mazda CX-5 Service & Repair Manual: Pressure Control Solenoid [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
-
The pressure control solenoid adjusts the pressure control solenoid pressure and controls the line pressure based on the control signal from the TCM.
Construction
-

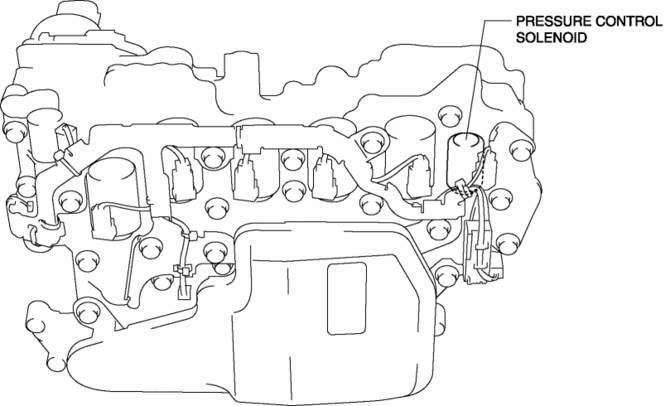

The pressure control solenoid is installed to the solenoid control valve body.
-
The pressure control solenoid is a normal open-type linear solenoid.
Operation
-
Adjusts the pressure control solenoid pressure by increasing/decreasing the energization current to the pressure control solenoid according to the signal from the TCM.
