Mazda CX-5 Service & Repair Manual: Intake Air System Removal/Installation
WARNING:
-
A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
1. Disconnect the negative battery cable..
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
|
1 |
Ventilation hose (See Ventilation Hose Installation Note.) |
|
2 |
Resonance chamber (See Resonance Chamber Removal Note.) |
|
3 |
Air hose (See Air Hose Installation Note) |
|
4 |
Air cleaner cover |
|
5 |
Air cleaner element |
|
6 |
Fresh-air duct (See Fresh-air Duct Removal Note.) (See Fresh-air Duct Installation Note.) |
|
7 |
Air cleaner case (See Air Cleaner Case Installation Note.) |
|
8 |
Throttle body |
|
9 |
Vacuum hose (See Vacuum Hose Removal Note.) (See Vacuum Hose Installation Note.) |
|
10 |
Evaporative hose (See Evaporative Hose Installation Note) |
|
11 |
PCV hose |
|
12 |
Intake manifold (See Intake Manifold Removal Note) |
Resonance Chamber Removal Note
1. Remove the MAF sensor/IAT sensor No.1..
2. Remove the following parts as a single unit:
-
Air hose
-
Air cleaner cover
-
Air cleaner element
-
Air cleaner case
-
Fresh-air duct
-
Resonance chamber
3. Remove the resonance chamber.
Fresh-air Duct Removal Note
1. Pull out the fresh-air duct while pressing the tab shown in the figure.
Vacuum Hose Removal Note
1. Remove the plug hole plate..
2. Remove the vacuum hose.
Intake Manifold Removal Note
1. Remove the MAP sensor/IAT sensor No.2..
2. Disconnect the harness clip from the intake manifold as shown in the figure.
3. Remove the intake manifold.
Evaporative Hose Installation Note
1. Install the evaporative hose as shown in the figure.
Vacuum Hose Installation Note
1. Install the vacuum hose as shown in the figure.
Air Cleaner Case Installation Note
1. Install the air cleaner case as shown in the figure.
Fresh-air Duct Installation Note
1. Install the fresh-air duct as shown in the figure.
Air Hose Installation Note

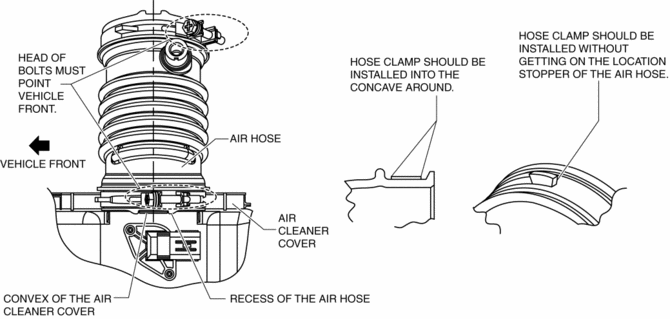

1. Install the air hose as shown in the figure.
Throttle body side
Air cleaner side
Ventilation Hose Installation Note
1. Install the ventilation hose as shown in the figure.
Cylinder head cover side
Air hose side
Air Intake Control [Full Auto Air Conditioner]
Purpose
The air intake control switches the air intake port (FRESH/REC) according
to the vehicle environment.
Function
The air intake control drives the air intake actuator and ...
Intake Air System
Purpose, Outline
A vacuum pump has been adopted which supplies stable vacuum to the power
brake unit.
Structural View
System Diagram
Vacuum Hose Routing Diagram
Structur ...
