Mazda CX-5 Service & Repair Manual: Front Stabilizer Removal/Installation

Mazda CX-5 Service & Repair Manual / Suspension / Front Suspension / Front Stabilizer Removal/Installation

CAUTION:

1. Remove the joint cover..

2. Disconnect the intermediate shaft from the steering gear and linkage..

3. Disconnect the front ABS wheel-speed sensor wiring harness installed to the steering knuckle and set it aside..


4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

6. Inspect the wheel alignment and adjust it if necessary..



1

Front stabilizer control link

2

Dynamic damper (if equipped)

3

Front crossmember component

(See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

4

Front stabilizer bracket

(See Front Stabilizer, Front Stabilizer Bushing and Front Stabilizer Bracket Installation Note.)

5

Front stabilizer bushing

(See Front Stabilizer Bushing, Front Stabilizer Bracket Installation Note.)

(See Front Stabilizer, Front Stabilizer Bushing and Front Stabilizer Bracket Installation Note.)

6

Front stabilizer

(See Front Stabilizer, Front Stabilizer Bushing and Front Stabilizer Bracket Installation Note.)


Front Stabilizer Bracket Removal Note

1. Secure the front stabilizer bracket flange using a vise.


Front Stabilizer Bushing, Front Stabilizer Bracket Installation Note

1. Install the front stabilizer bushing to the front stabilizer with its slit positioned rearward of the vehicle.


2. Install the front stabilizer bracket to the front stabilizer bushing by hand using the following procedure.

3. If the front stabilizer bracket cannot be installed by hand, install it using a vice.

CAUTION:

4. During front stabilizer bracket installation, keep the deviation in the positions of the front stabilizer bracket and the front stabilizer bushing within the range shown in the figure.


5. After installing the front stabilizer bracket, verify that the positions of the front stabilizer bracket and the front stabilizer bushing are within the range shown in the figure.

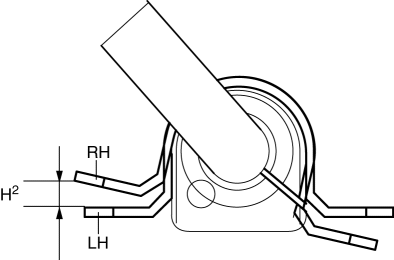

6. After installing the front stabilizer bracket, verify that the right and left-side positions of the front stabilizer bracket are within the range shown in the figure.


7. Place the front stabilizer component on a level workbench, and verify that it is within the range shown in the figure.


Front Stabilizer, Front Stabilizer Bushing and Front Stabilizer Bracket Installation Note

1. Temporarily tighten bolts A and B shown in the figure.


2. Tighten bolt A.

3. Tighten bolt B.

4. Tighten bolt A.
