1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Dashboard under cover.
b. Side wall.
c. Glove compartment.

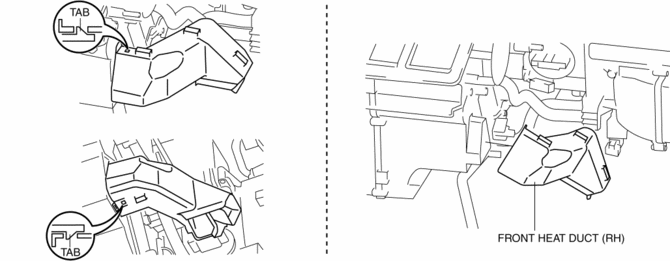

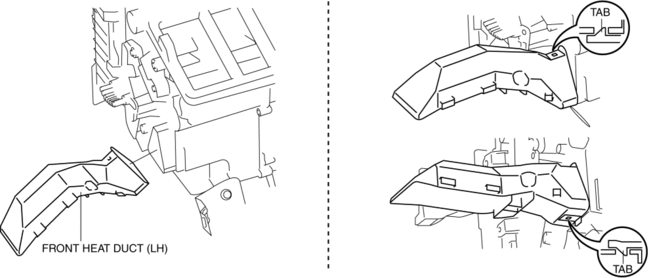

3. Detach the tab and remove the front heat duct.
LH

RH

4. Install in the reverse order of removal.
