Mazda CX-5 Service & Repair Manual: Crash Zone Sensor [Standard Deployment Control System]
Purpose
-
The crash zone sensor detects an impact during a frontal or frontal offset collision to the vehicle.
Function
-
The crash zone sensor converts the detected impact to an electrical signal.
Construction
-
The crash zone sensor is built into the clutch sensor.
-

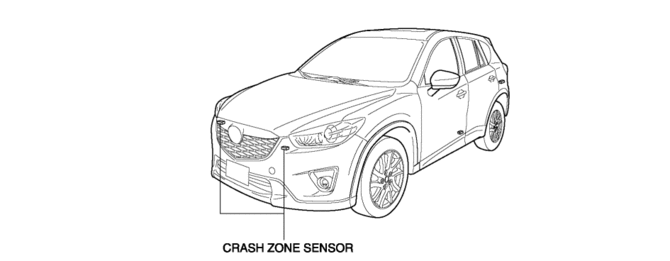

The crash zone sensor is installed to the shroud panel of the front bumper backside.
-
Two crash zone sensors are installed for independent impact detection on the left and right.
Operation
-
The impact from a frontal or frontal offset collision to the vehicle is transmitted to the crash zone sensor.
-
The crash sensor built into the crash zone sensor detects the impact and converts the impact into an electrical signal at the signal processing circuit.
-
The crash zone sensor sends a signal indicating the degree of impact, which is converted to an electrical signal, to the SAS control module.
Fail-safe
-
Function not equipped.
