Mazda CX-5 Service & Repair Manual: Ignition System [Skyactiv G 2.0]

Mazda CX-5 Service & Repair Manual / Electrical / Ignition / Ignition System [Skyactiv G 2.0]

Outline

A direct ignition coil for independent ignition control has been adopted.
An ignition coil built-into the ion sensor has been adopted.
An iridium spark plug has been adopted.

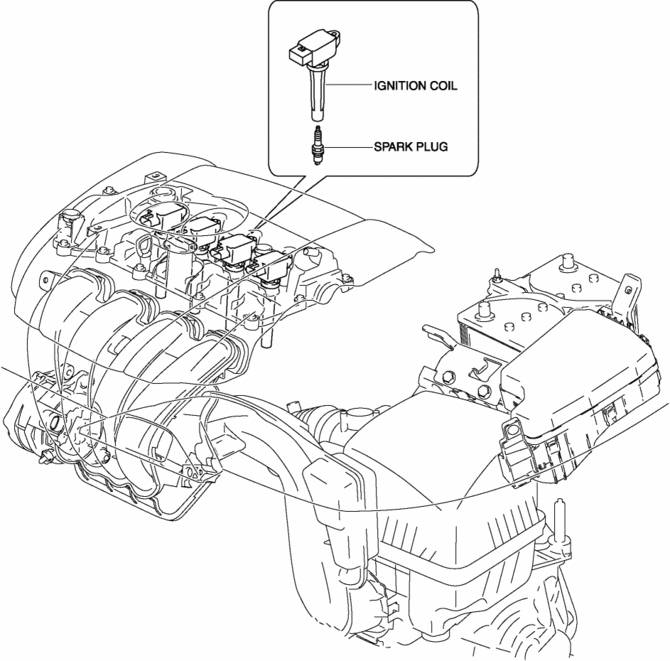

Structural View

Structure

Consists of the following parts:

Spark plug	(See SPARK PLUG [SKYACTIV-G 2.0].)
Ignition coil	(See IGNITION COIL [SKYACTIV-G 2.0].)

Ignition Coil/Ion Sensor Removal/Installation [Skyactiv G 2.0]

1. Disconnect the negative battery cable.. 2. Remove the plug hole plate.. 3. Remove in the order indicated in the table. 4. Install in the reverse order of removal. 1 ...

Spark Plug Inspection [Skyactiv G 2.0]

Specification Spark plug type PE01-18110, PE02-18110 Plug Gap Inspection CAUTION: To avoid possible damage to the tip, do not adjust the plug gap. To prevent damaging t ...
