Mazda CX-5 Service & Repair Manual: Tcs/DSC Indicator Light
Purpose/Function
-

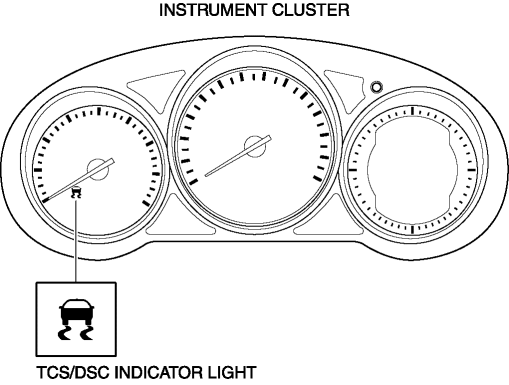

The TCS/DSC indicator light, built into the instrument cluster, informs the driver of the following vehicle conditions.
-
TCS is operating. (Drive wheel is slipping.)
-
DSC is operating. (Vehicle side-slip condition.)
-
Roll over mitigation (ROM) is operating.
-
DSC system malfunction.
Operation
-
When the DSC system and CAN lines are normal, the TCS/DSC indicator light illuminates for approx. 3.0 s when the ignition is switched to ON to check the light function. When the system is malfunctioning, the TCS/DSC indicator light remains illuminated.
-
When the TCS, DSC or roll over mitigation (ROM) are non-operational, operational and malfunctioning, the TCS/DSC indicator light operates according to the following table.
TCS/DSC indicator light operation
|
Item |
TCS/DSC indicator light |
|
TCS, DSC, and roll over mitigation (ROM) not operating
|
Not illuminated |
|
TCS operating
|
Flashes (0.5 s intervals) |
|
DSC operating
|
|
|
Roll over mitigation (ROM) operating
|
|
|
DSC system malfunction
|
Illuminated |
Fail-safe
-
Function not equipped.
