Mazda CX-5 Service & Repair Manual: Starter [Skyactiv G 2.0]
Purpose, Function
-
The starter rotates the crankshaft via the ring gear and it serves as a trigger to start the engine.
Construction
-

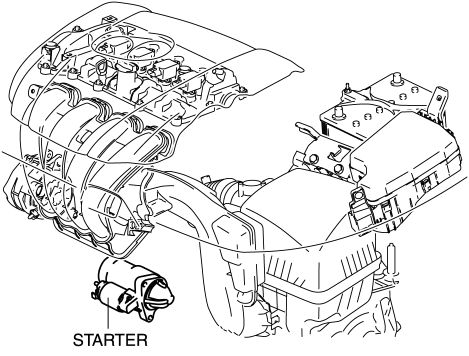

The starter is installed to the rear part of the engine on the left side.
-
The starter is a coaxial reduction type which can obtain high torque.
Operation
-
For starter cut-off control details, refer to CONTROL SYSTEM..
Fail-safe
-
Function not equipped.
Starter Removal/Installation [Skyactiv G 2.0]
WARNING:
Remove and install all parts when the engine is cold, otherwise they can
cause severe burns or serious injury.
When the battery cables are connected, touching the vehic ...
Starting System [Skyactiv G 2.0]
Outline
A coaxial reduction type starter has been adopted.
Structural View
Structure
Consists of the following parts:
Starter
(See STAR ...
