Mazda CX-5 Owners Manual: Interior Equipment (View B)

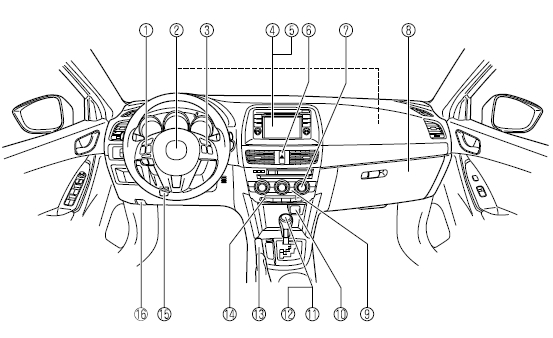

1 Audio control switches

2 SRS air bags

3 Cruise control switches

4 Navigation system (if equipped)

5 Audio system

6 Hazard warning flasher switch

7 Climate control system

8 Glove compartment

9 Rear window defroster switch

10 Accessory socket

11 MT shift lever

12 AT shift lever

13 Parking brake

14 Seat warmer switches

15 Lock release lever

16 Hood release handle

Interior Equipment (View A)
1 Door-lock knob 2 TCS OFF switch 3 Tire pressure monitoring system set switch 4 Turn and lane-change signal 5 Lighting control 6 Instrument cluster 7 Dashboard illumination knob 8 Wipe ...

Interior Equipment (View C)
1 Seat belts 2 SRS curtain air bag 3 Remote fuel-filler lid release 4 Bottle holder 5 Vanity mirror 6 Moonroof switch 7 Overhead lights 8 Rearview mirror 9 Sunvisor 10 Cup holders ...
