Mazda CX-5 Service & Repair Manual: Engine Oil Level Inspection
1. Position the vehicle on level ground.
2. Warm up the engine.
3. Stop the engine and allow at least 5 min
before continuing.
4. Remove the dipstick, wipe it cleanly, and reinstall it fully.

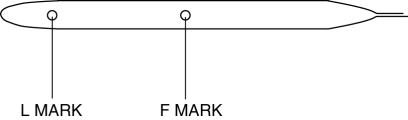

5. Remove the dipstick and verify that the oil level is between the F and L marks on the dipstick.
-
If the oil level is below or near the L mark, add engine oil..
-
If the oil level is above the F mark, penetration of fuel into the engine oil can be considered. Replace the engine oil..
6. Insert the oil level gauge completely until it attaches to the cylinder head cover.
Engine Oil Control
Outline
The PCM reduces the oil pump load applied to the engine by controlling the
appropriate engine hydraulic pressure according to the engine operation conditions.
The engine hydr ...
Engine Oil Pressure Warning Light
Purpose
The engine oil pressure warning light warns the driver that the engine oil
level is insufficient.
Function
When the instrument cluster receives the engine oil pressure w ...
