Mazda CX-5 Service & Repair Manual: Automatic Transaxle Shift Mechanism [Fw6 A EL, Fw6 Ax EL]
Outline
-
A sport AT-type shift mechanism has been adopted for all models.
-
An electric shift-lock system has been adopted to prevent driver mis-operation.
-
A manual shift-lock release system has been adopted to ensure emergency bypass if shifting operations cannot be performed.

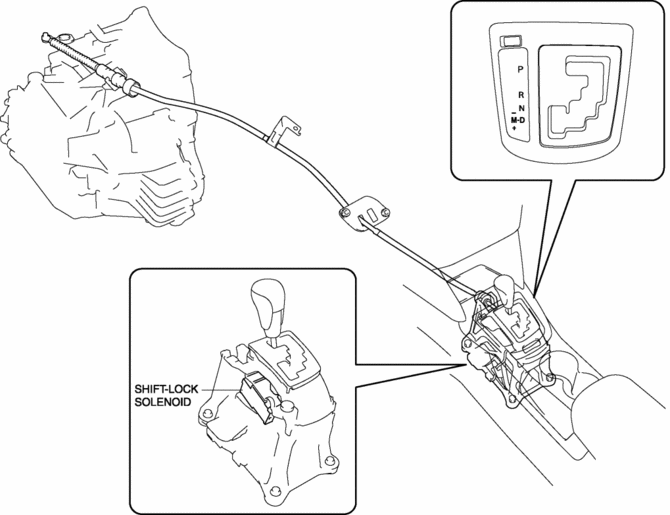

Structural view
Automatic Transaxle Shift Mechanism Removal/Installation
Selector Lever Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the front console..
3. Disconnect the selector lever component connector.
4. Remove the selector cab ...
Automatic Transaxle Warning Light [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
The automatic transaxle warning light illuminates when the transaxle has
malfunction.
Construction
The automatic transaxle warning light is built into the instr ...
