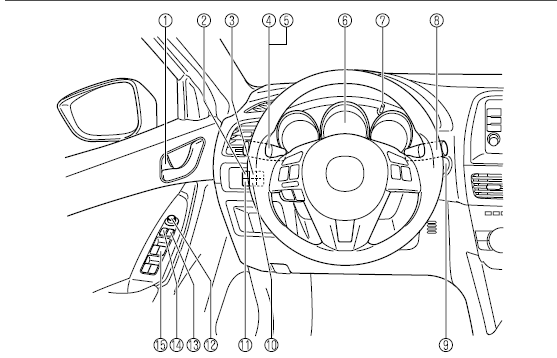

Mazda CX-5 Owners Manual: Interior Equipment (View A)


1 Door-lock knob

2 TCS OFF switch

3 Tire pressure monitoring system set switch

4 Turn and lane-change signal

5 Lighting control

6 Instrument cluster

7 Dashboard illumination knob

8 Wiper and washer lever

9 Push button start

10 AFS OFF switch

11 BSM OFF switch

12 Outside mirror switch

13 Door-lock switch

14 Power window lock switch

15 Power window switches

Interior Overview
...

Interior Equipment (View B)
1 Audio control switches 2 SRS air bags 3 Cruise control switches 4 Navigation system (if equipped) 5 Audio system 6 Hazard warning flasher switch 7 Climate control system 8 Glove compa ...
