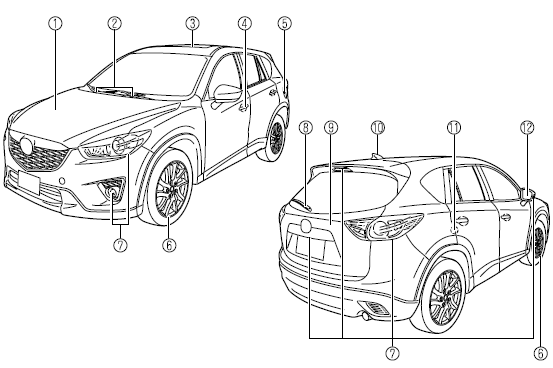

Mazda CX-5 Owners Manual: Exterior Overview
1 Hood
2 Windshield wiper blades
3 Moonroof
4 Doors and keys
5 Fuel-filler lid
6 Wheels and Tires
7 Exterior lights
8 Rear window wiper blade
9 Liftgate
10 Antenna
11 Child safety locks
12 Outside mirror
Interior Equipment (View C)
1 Seat belts
2 SRS curtain air bag
3 Remote fuel-filler lid release
4 Bottle holder
5 Vanity mirror
6 Moonroof switch
7 Overhead lights
8 Rearview mirror
9 Sunvisor
10 Cup holders
...
