Mazda CX-5 Service & Repair Manual: Fuel Distributor
Purpose, Function
-
Distributes fuel pumped from the high pressure fuel pump to each fuel injector.
Construction
-

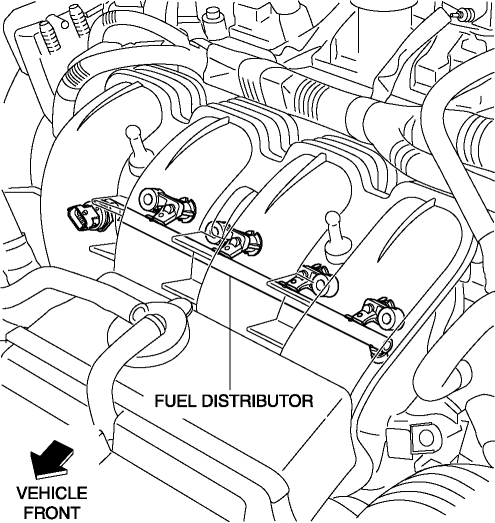

The fuel distributor is installed to the cylinder head.
-

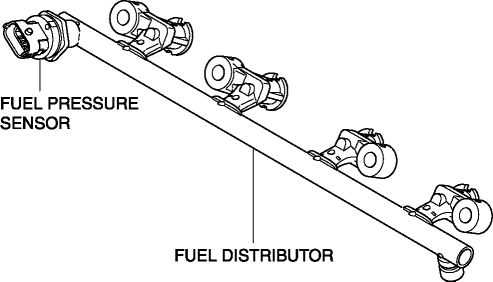

The fuel distributor is integrated with the fuel pressure sensor.
Direct Fuel Injection System
Purpose, Outline
Engine output has been improved through the direct injection of fuel into
the combustion chamber.
High response can be because there is no time lag from when the fue ...
Fuel Draining Procedure
WARNING:
Fuel line spills and leakage from the pressurized fuel system are dangerous.
Fuel can ignite and cause serious injury or death and damage. To prevent this,
complete the followin ...
