Mazda CX-5 Service & Repair Manual: Brake Fluid Level Sensor Inspection

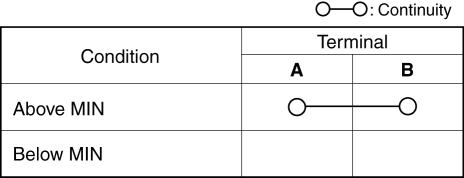

1. Disconnect the brake fluid level sensor connector from the master cylinder.
2. Inspect for continuity according to fluid level between the brake fluid level sensor terminals.
-
If not as indicated in the table, replace the reserve tank..
Brake Switch Inspection
CAUTION:
Inspect the brake switch with it installed to the brake pedal, otherwise
the brake switch may not operate normally. If the brake switch is removed from
the brake pedal, replace ...
