Mazda CX-5 Service & Repair Manual: Water Pump
Purpose, Function
-
The water pump operates by obtaining drive force from the engine via the drive belt to pump engine coolant.
Construction
-

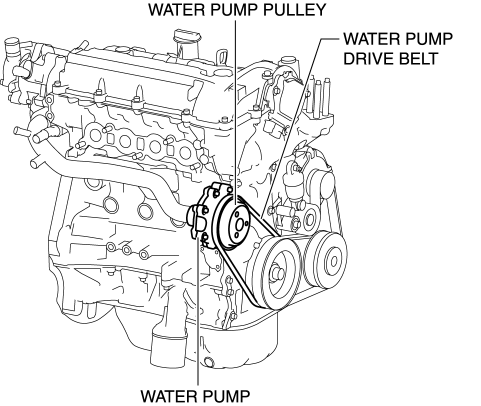

The water pump is installed to the engine front.
-

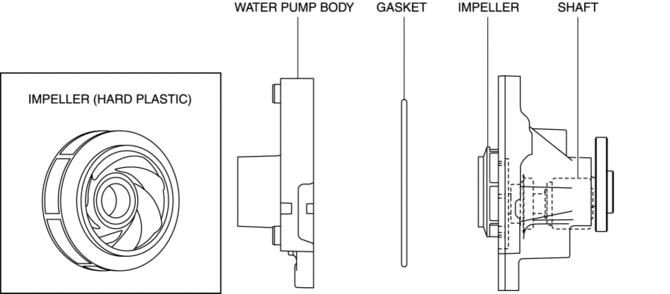

The water pump consists of the following parts:
-

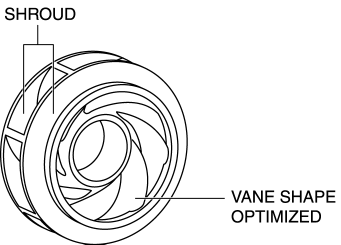

A hard plastic shroud impeller has been adopted to the impeller. As a result, leakage loss from the front and back surfaces of the impeller is reduced and the pump efficiency is improved.
Operation
1. The water pump pulley rotates by obtaining drive force from the engine via the drive belt.
2. The impeller with the water pump pulley and shaft connected rotates to pump engine coolant.
Water Pump Removal/Installation
WARNING:
Never remove the cooling system cap or loosen the radiator drain plug while
the engine is running, or when the engine and radiator are hot. Scalding engine
coolant and steam may ...
