Mazda CX-5 Service & Repair Manual: Washer Nozzle
Purpose
-
The washer nozzle sprays the washer fluid sent from the washer motor to the optimum positions on the windshield.
Construction
-

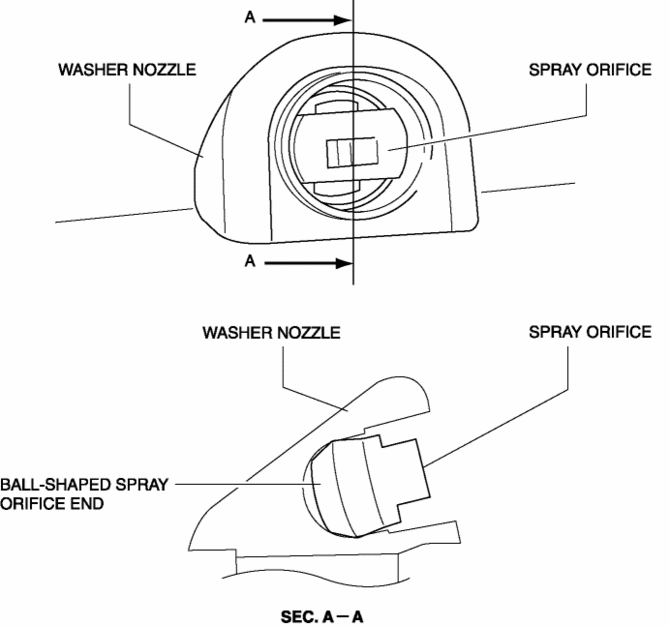

A ball-shaped spray orifice is set inside the washer nozzle which can be adjusted up or down.
-

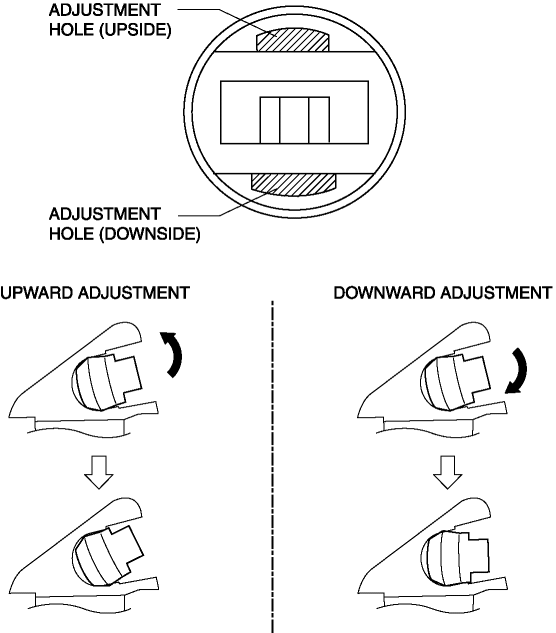

The washer nozzle is moved up and down using the adjustment holes.
Fail-safe
-
Function not equipped.
Washer Motor Removal/Installation
1. Disconnect the negative battery cable..
2. Set the front over fender aside..
3. Set the mudguard (RH) aside..
4. Remove the front bumper..
5. Disconnect the washer motor connector from the ...
Washer Tank Removal/Installation
With Washer Fluid-level Sensor
1. Disconnect the negative battery cable..
2. Set the front over fender aside..
3. Set the mudguard (RH) aside..
4. Remove the front bumper..
5. Remove the brac ...
