Mazda CX-5 Service & Repair Manual: Ventilator Grille Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / General / Ventilator Grille Removal/Installation

Side Ventilator Grille

Driver-side

1. Disconnect the negative battery cable..

2. Remove the switch panel..

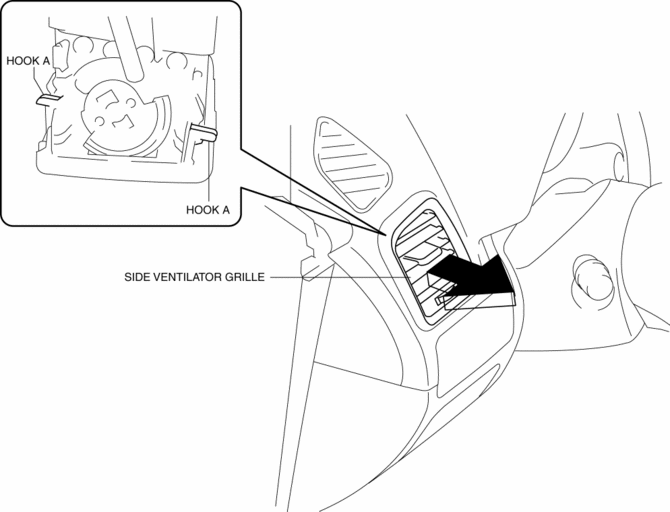

3. Insert your hand from the area where the switch panel was installed, remove the side ventilator grille in the direction of the arrow shown in the figure while detaching hooks A.


4. Install in the reverse order of removal.

Passenger-side

1. Disconnect the negative battery cable..

2. Open the glove compartment.

3. Remove the glove compartment..

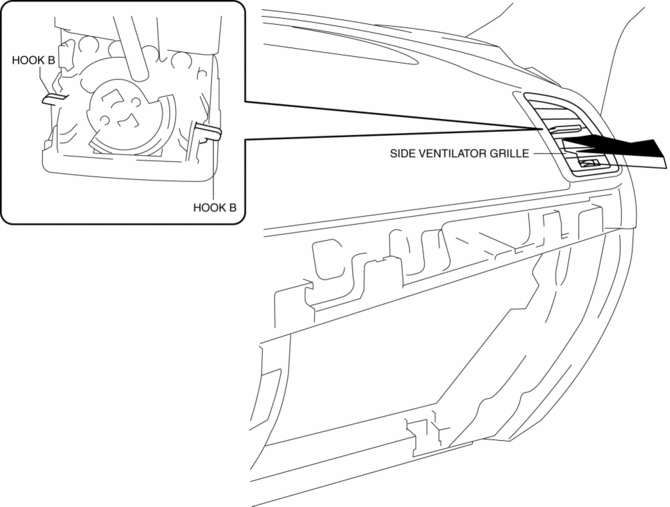

4. Insert your hand from the area where the glove compartment was installed, remove the side ventilator grille in the direction of the arrow shown in the figure while detaching hooks B.


5. Install in the reverse order of removal.

Center Ventilator Grille

1. Disconnect the negative battery cable..

2. Remove the decoration panel..

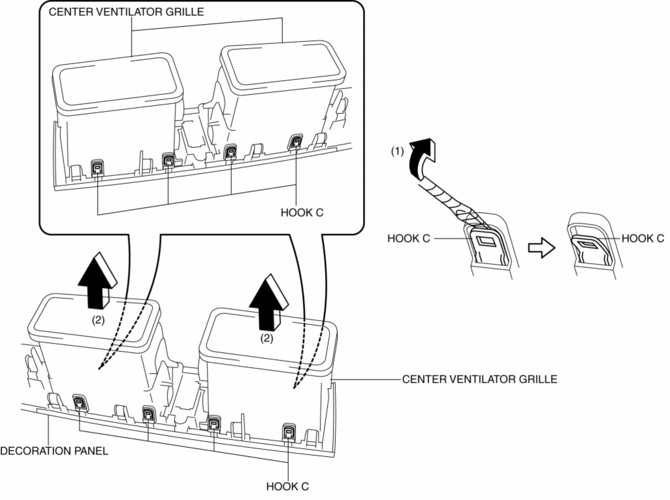

3. Push the edge of center ventilator grille in the direction of arrow (1) and detach hooks C.


4. Remove the center ventilator grille in the direction of arrow (2) shown in the figure.

5. Install in the reverse order of removal.
