Mazda CX-5 Owners Manual: Vent Operation
Adjusting the Vents
Directing airflow
To adjust the direction of airflow, move the adjustment knob.
NOTE
hen using the air conditioner under humid ambient temperature conditions, the system may blow fog from the vents. This is not a sign of trouble but a result of humid air being suddenly cooled.
Side Vents
Center Vents

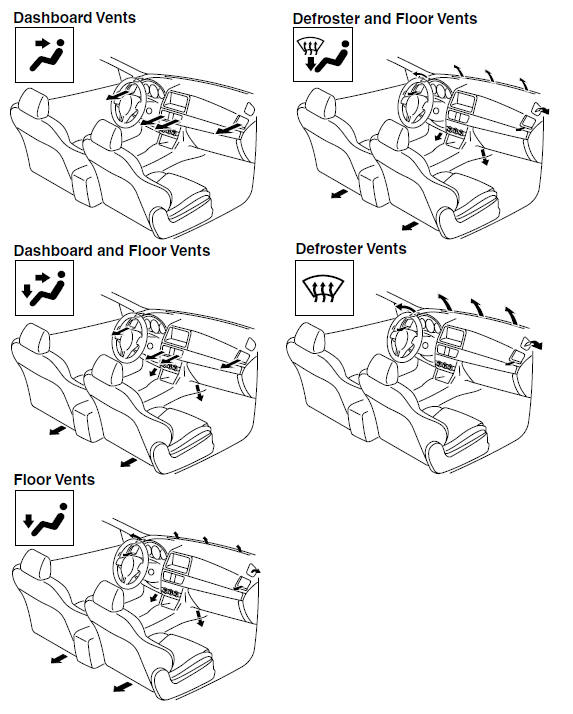

Selecting the Airflow Mode
Operating Tips
Operate the climate control system with the engine running.
• To prevent the battery from being discharged,
do not leave the fan control dial on for a long period of time with the ignition
swit ...
Manual Type
Control Switches
Temperature control dial
This dial controls temperature. Turn it clockwise for hot and counterclockwise
for cold.
NOTE
When the mode is set to or with the fan control dial in ...
