Mazda CX-5 Service & Repair Manual: Vanity Mirror Illumination Inspection

Mazda CX-5 Service & Repair Manual / Body / Lighting & Horn / General / Vanity Mirror Illumination Inspection

1. Disconnect the negative battery cable..

2. Remove the sunvisor..

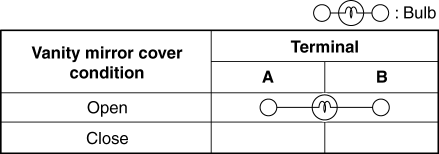

3. Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.
