Mazda CX-5 Service & Repair Manual: Valve Mechanism
Outline
-
A DOHC type valve system has been adopted and consists of four valves (two intake valves and two exhaust valves) per cylinder for a total of 16 valves operated by two camshafts.

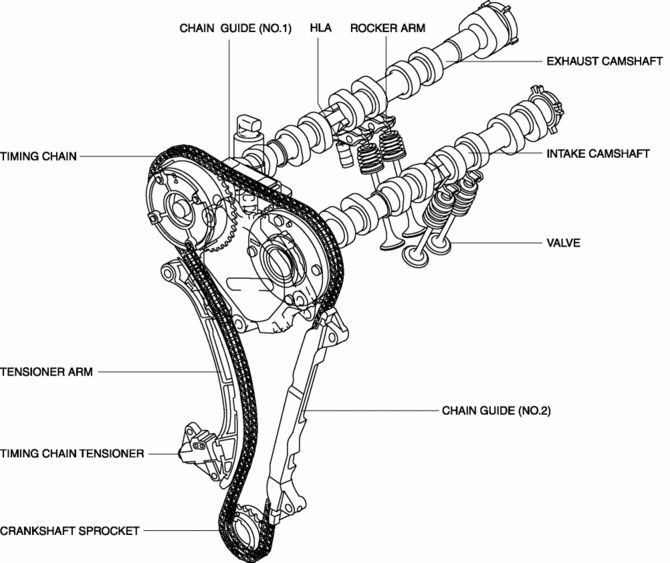

Structural View
Resonance Chamber
Purpose, Function
Pulsation of intake air is controlled and intake air noise is reduced by
adding an intake air passage.
Construction
The resonance chamber is installed to fresh ...
Variable Valve Timing Mechanism
Outline
Achieves optimum valve timing according to the driving conditions by the
variable valve timing mechanism changing the phases of the camshaft.
An electric type variable valve ...
