Mazda CX-5 Service & Repair Manual: Vacuum Line Inspection
1. Remove the vacuum hose..

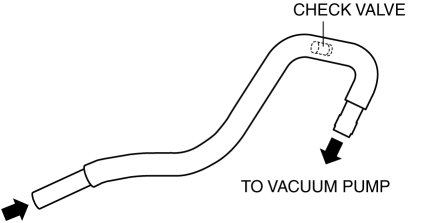

2. Verify that air can be blown from the power brake unit side of the vacuum hose towards the vacuum pump side, and that air cannot be blown in the opposite direction.
-
If there is any malfunction of the inner check valve, replace it together with the vacuum hose as a single unit.
Vacuum Hose Removal/Installation
1. Pinch open the clamp using pliers and disconnect the vacuum hose.
2. Pinch open the clamp using pliers and disconnect the vacuum hose.
3. Remove the vacuum hose.
4. Install in the rev ...
Vacuum Pump Inspection
1. Pinch open the clamp using pliers and disconnect the vacuum hose from the
vacuum pump..
2. Install the vacuum gauge as shown in the figure, then check the vacuum.
3. Warn up the engine. ...
