Mazda CX-5 Service & Repair Manual: Vacuum Hose Removal/Installation

Mazda CX-5 Service & Repair Manual / Brakes / General / Vacuum Hose Removal/Installation

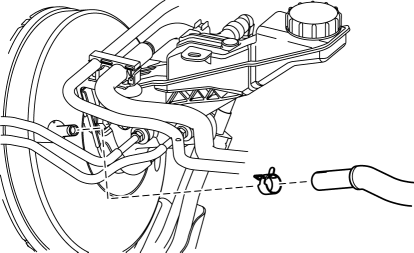

1. Pinch open the clamp using pliers and disconnect the vacuum hose.


2. Pinch open the clamp using pliers and disconnect the vacuum hose.


3. Remove the vacuum hose.

4. Install in the reverse order of removal.
