Mazda CX-5 Service & Repair Manual: Transmission/Transaxle Identification
-

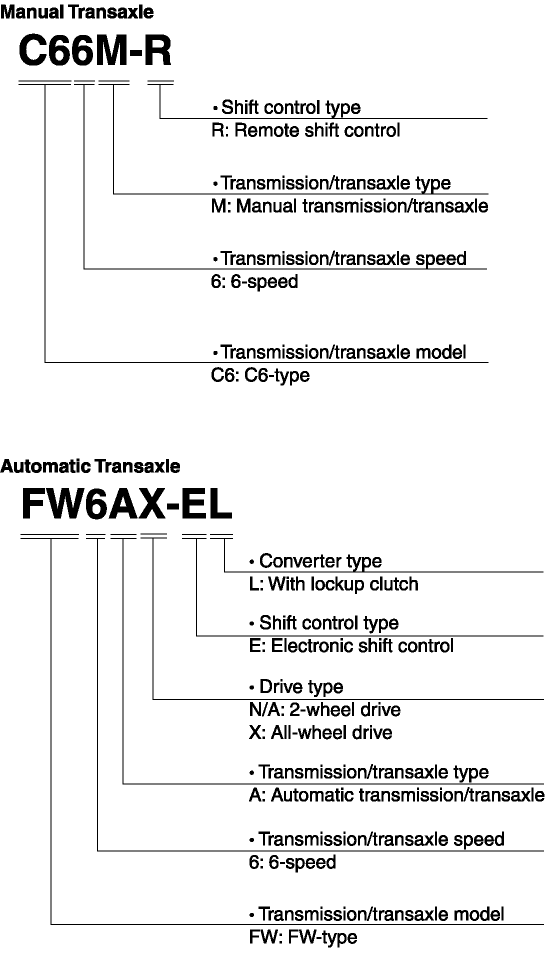

Each Transmission/Transaxle is assigned a specific Mazda type code. The code can be broken down as follows:
Transmission/Transaxle Features
Clutch and Manual Transaxle [C66M-R]
A newly developed, C6-type manual transaxle (SKYACTIV-MT) with 6 forward
gears and 1 reverse gear has been adopted.
Automatic Transaxle [FW6A-EL, F ...
Transmission/Transaxle SST
1: Mazda SST number
2: Global SST number
Example
1:49 UN30 3009
2:303-009
Crankshaft damper remover
Clutch [C66M-R]
1:49 E011 1A0
2: ...
