Mazda CX-5 Service & Repair Manual: Tie Rod Inspection
1. Inspect for bending and damage.
-
If there is any malfunction, replace the tie rod.
2. Inspect for excessive play.
-
If there is any malfunction, replace the tie rod.
3. Swing the tie rod five times.

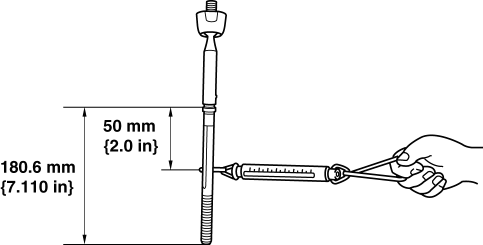

4. Measure the swing torque of the tie rod using a pull scale.
-
If not within the specification, replace the tie rod.
-
Tie rod swing torque
-
0.4—4.0 N·m {4.1—40 kgf·cm, 3.6—35 in·lbf} [Pull scale reading: 8—80 N {0.9—8.1 kgf, 2—17 lbf}]
