Mazda CX-5 Service & Repair Manual: Theft Deterrent Horn Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Trunk end trim.
b. Rear scuff plate (RH).
c. Trunk side trim (RH).

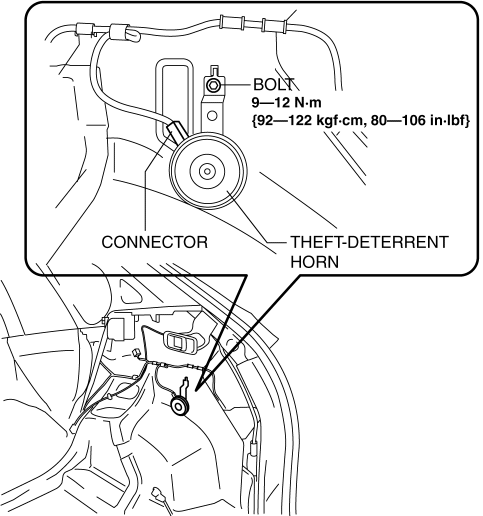

3. Disconnect the connector.
4. Remove the bolt.
5. Remove the theft-deterrent horn.
6. Install in the reverse order of removal.
Theft Deterrent Horn Inspection
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Trunk end trim.
b. Rear scuff plate (RH).
c. Trunk side trim (RH).
d. Theft-deterrent horn.
3. Apply battery po ...
