Mazda CX-5 Service & Repair Manual: Theft Deterrent Horn Inspection
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Trunk end trim.
b. Rear scuff plate (RH).
c. Trunk side trim (RH).
d. Theft-deterrent horn.

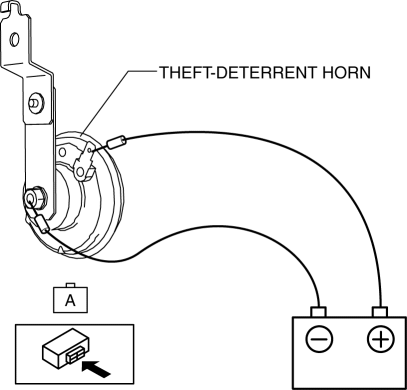

3. Apply battery positive voltage to horn terminal A, and connect the horn retaining bolt to ground as shown in the figure, and then verify that the horn sounds.
-
If the horn does not sound, replace the horn.
Horn Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the front bumper..
3. Disconnect the connector.
4. Remove the bolt.
5. Remove the horn.
6. Install in the reverse order of removal. ...
Theft Deterrent Horn Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Trunk end trim.
b. Rear scuff plate (RH).
c. Trunk side trim (RH).
3. Disconnect the connector.
4. Remove t ...
